PRODUCTS - Fall Protection & Safety - HARNESSES


CLASS A Fall Arrest | CLASS D Suspension & Controlled Descent | CLASS E Limited Access | CLASS L Ladder Climbing | CLASS P Work Positioning

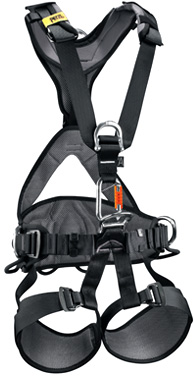

AVAO BOD FAST

The dorsal construction is X-shaped to more completely envelop the user. This design optimally distributes pressure in order to ensure great comfort during prolonged suspension.

Shoulder straps with self-locking DoubleBack buckles for easier harness adjustment.

Six equipment loops on the sides and rear of the waistbelt They are shaped to facilitate clipping carabiners. Retainers allow CARITOOL tool holders and TOOLBAG tool pouches to be attached.

The AVAO BOD fall arrest, work positioning, and rescue harness is designed for greater comfort in all situations. The X-shaped dorsal construction wraps to reduce pressure points during prolonged suspension. The harness also facilitates carrying and organization of tools with multiple equipment loops and retainers for attaching CARITOOLs and TOOLBAG pouches. The AVAO BOD harness has a specific construction that allows the user to hang from the dorsal attachment point for a longer time in case of a fall.

Selling points
  • Designed for comfort in any situation:
    - X-shaped dorsal construction wraps to reduce pressure points during prolonged suspension.
    - semi-rigid, wide waistbelt and leg loops for excellent positioning; sculpted and lined with breathable perforated foam for comfort during suspension
    - foam shoulder straps are widely spaced to reduce neck chafing; when the waistbelt is loaded, they help distribute this load over the shoulders
  • Practical adjustment:
    - waistbelt and shoulder straps equipped with self-locking DoubleBack buckles for quick and easy adjustment
    - available with leg loops equipped with self-locking DoubleBack buckles or FAST buckles for quick and easy opening and closing without the need to readjust them, even while wearing gloves
    - fold-away side attachment points prevent accidental snagging
  • Facilitates carrying and organization of tools:
    - Six pre-shaped equipment loops with protective sheath
    - four CARITOOL tool holder retainers
    - four slots for TOOLBAG tool pouch
  • Less traumatizing post-fall position:
    - in case of a fall on the dorsal attachment point, the load is distributed over the leg loops, allowing the user to remain suspended longer while awaiting rescue
  • Comes in European (European standards) and international (North American and European standards) versions; internationalversions have a fall indicator: a red strap appears on the dorsal attachment point after a fall to indicate that the harness should be retired
Product specifications
  • Attachment points:
    - ventral (connection of a descender or a positioning lanyard for use in single mode) - side (connection of a positioning lanyard for use in double mode)
    - sternal and dorsal (connection of a fall-arrest system)
    - rear waistbelt (connection of restraint lanyard)
  • Material(s): nylon, polyester, aluminum, steel
View Specifications and Technical Information

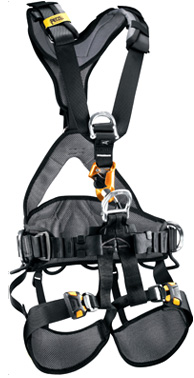

AVAO BOD CROLL FAST

The dorsal construction is X-shaped to more completely envelop the user. This design optimally distributes pressure in order to ensure great comfort during prolonged suspension.

Integrated CROLL ventral rope clamp. The shoulder-strap/waistbelt connector is equipped with a captive bar to inhibit connector rotation.

Shoulder straps with self-locking DoubleBack buckles for easier harness adjustment.

Two attachment points allow a PODIUM seat to be added, for greater comfort during prolonged suspension.

With an integrated CROLL ventral rope clamp, the AVAO BOD CROLL FAST harness was designed for greater comfort during rope ascents. The X-shaped dorsal construction wraps to reduce pressure points during prolonged suspension. The AVAO BOD CROLL FAST also facilitates carrying and organization of tools, with multiple equipment loops and retainers for attaching CARITOOLs and TOOLBAG pouches. The AVAO BOD CROLL FAST harness has a specific construction that allows the user to hang from the dorsal attachment point for a longer time in case of a fall.

Selling points
  • Integrated CROLL ventral rope clamp for ascending ropes
  • Built for comfort:
    - X-shaped dorsal construction wraps to reduce pressure points during prolonged suspension.
    - semi-rigid, wide waistbelt and leg loops for excellent positioning; sculpted and lined with breathable perforated foam for comfort during suspension
    - foam shoulder straps are widely spaced to reduce neck chafing; when the waistbelt is loaded, they help distribute this load over the shoulders
    - attachment points for installing a PODIUM seat for use in prolonged suspension
  • Practical adjustment:
    - waistbelt and shoulder straps equipped with self-locking DoubleBack buckles for quick and easy adjustment
    - leg loops equipped with FAST buckles for quick and easy opening and closing without the need to readjust them, even while wearing gloves
    - fold-away side attachment points prevent accidental snagging
  • Facilitates carrying and organization of tools:
    - Six pre-shaped equipment loops with protective sheath
    - four CARITOOL tool holder retainers
    - four slots for TOOLBAG tool pouch
  • Less traumatizing post-fall position:
    - in case of a fall on the dorsal attachment point, the load is distributed over the leg loops, allowing the user to remain suspended longer while awaiting rescue
  • Comes in European (European standards) and international (North American and European standards) versions; internationalversions have a fall indicator: a red strap appears on the dorsal attachment point after a fall to indicate that the harness should be retired
View Specifications and Technical Information

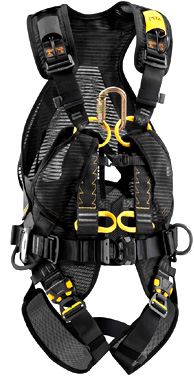

VOLT® Canada Version

The EASYFIT concept integrates a vest that ensures the harness keeps its shape, and FAST automatic buckles (waistbelt and leg loop) that allow the harness to be donned with both feet on the ground.

The wide, semi-rigid waistbelt offers excellent lumbar support in work positioning situations. Additionally, its lightweight, breathable construction maximizes air flow.

For vertical progression with a rail or cable-based fall protection system, the LADDER CLIMB attachment point allows for ventral attachment of the trolley. It distributes the load on the waistbelt and thus ensures optimal comfort during progression. In case of a fall, this attachment point automatically moves upward to a sternal position to ensure a vertical post-fall body position.

Fall indicators on the sternal and dorsal attachment points. If a fall indicator is visible after a fall, the harness must be retired.

Fall arrest and work positioning harness that is easily donned thanks to its EASYFIT design. A vest ensures the harness keeps its shape and the FAST automatic buckles (waistbelt and leg loop) allow the harness to be donned with both feet on the ground. The VOLT harness' anatomical design and wide, semi-rigid waistbelt ensure comfort throughout the work day. Its LADDER CLIMB attachment point allows for ventral attachment of the fall-arrest trolley, thus ensuring optimal comfort during progression. It is certified to Canadian and European standards.

Selling Points
  • Rapid donning thanks to the EASYFIT design:
    - vest ensures the harness keeps its shape
    - FAST automatic buckles on the waistbelt and leg loops allow the harness to be very easily donned, with both feet on the ground. These buckles retain their adjustment settings between donnings.
  • Comfortable throughout the work day:
    - anatomical design is close-fitting, while giving optimal freedom of movement
    - lightweight, breathable construction
    - wide, semi-rigid waistbelt for excellent support
    - for vertical progression with a rail or cable-based fall protection system, the LADDER CLIMB attachment point allows for ventral attachment of the fall-arrest trolley: it distributes the load on the waistbelt and thus ensures optimal comfort during progression. In case of a fall, this attachment point automatically moves upward to a sternal position to ensure a vertical post-fall body position.
    - leg loop foam position can be adjusted for perfect positioning
    - side slots allow a seat to be installed for greater comfort in prolonged suspension
  • Easy to use:
    - waistbelt and shoulder straps equipped with self-locking DoubleBack buckles for quick and easy adjustment
    - side attachment points can be folded down to prevent them snagging accidentally when not in use
    - fall indicators on the sternal and dorsal attachment points. If a fall indicator is visible after a fall, the harness must be retired. - equipment loops, slots for CARITOOL tool holder and TOOLBAG tool pouch allow easy organization of work tools
  • Comes with OXAN TRIACT-LOCK carabiner for connection to a fall arrest system on the sternal attachment point
Specification
  • LADDER CLIMB attachment point: for attaching the trolley of a rail or cable-based fall protection system
  • Side attachment points: for attaching a positioning lanyard for use in double mode
  • Sternal attachment point: for attaching a fall arrest system
  • Dorsal attachment point: for attaching a fall arrest system
  • Rear waistbelt attachment point: for attaching a restraint lanyard
  • Certification(s): CSA Z259.10, CE EN 361, CE EN 358
  • Material(s): nylon, polyester, aluminum, steel
View Specifications and Technical Information




FULL BODY HARNESSES

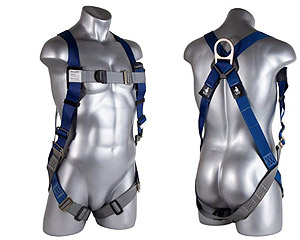

NPH-28

Fall Arrest Harness

  • 1 3/4" polyester webbing
  • Universal sizing with 5 points of adjustment
  • 6,000 lbs. minimum break strength
  • Pass-thru buckle leg straps
  • Colour coded straps for easy donning
  • Back D-ring for Fall Arrest (CSA CLASS A )
  • Fall Arrest indicator

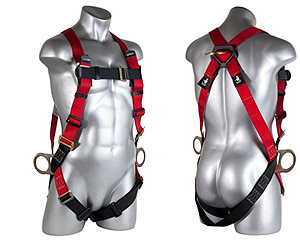

NPH-28 P

Fall Arrest & Work Positioning Harness

  • 1 3/4" polyester webbing
  • Universal sizing with 5 points of adjustment
  • 6,000 lbs. minimum break strength
  • Kwik-Loc leg & chest straps
  • Colour coded straps for easy donning
  • Back D-ring for Fall Arrest (CSA CLASS A )
  • 2 sided D-rings for work positioning (CSA CLASS P)
  • Plastic No Tangle Back X-piece
  • Fall Arrest indicator

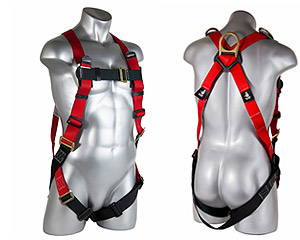

NPH-29

Confined Space Harness

  • 1 3/4" polyester webbing
  • Universal sizing with 5 points of adjustment
  • 6,000 lbs. minimum break strength
  • Tongue buckle leg straps
  • Colour coded straps for easy donning
  • Back D-ring for Fall Arrest (CSA CLASS A )
  • Shoulder D-rings for limited Access (CSA CLASS E)
  • Fall Arrest indicator

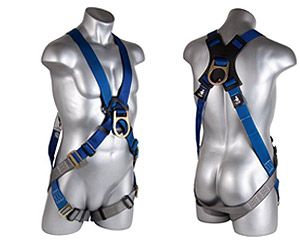

NPH-30

Cross-Over Style Harness

  • 1 3/4" polyester webbing
  • Universal sizing with 5 points of adjustment
  • 6,000 lbs. minimum break strength
  • Pass-thru buckle leg straps
  • Colour coded straps for easy donning
  • Back D-ring for Fall Arrest (CSA CLASS A )
  • Front D-ring, cross over for Ladder Climbing (CSA CLASS L)
  • Plastic No Tangle Back X-piece
  • Fall Arrest indicator
  • Available in fluorescent orange high visibility

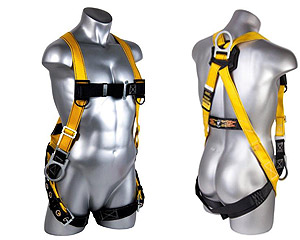

VELOCITY HARNESSES



CLASS A, E, P

Your employees and customers will appreciate this higher quality economy harness for an incredible value. While other manufacturers look to cut costs by cheapening up their lower end products, Norguard proves that we will not sacrifice quality or the protection of your employees to save a few nickels and dimes.

The new Velocity harness by Norguard brings the best economy harness to the market. Our engineers revamped the tired old basic harness into a higher quality product that your employees and customers will enjoy.

Available in sizes S - 2XL




SERAPH HARNESSES



CLASS A, E, P, L Available in sizes M - 2XL

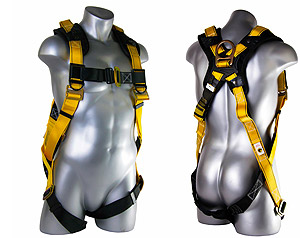

Seraph Universal Harness

  • 5 points of adjustment
  • Adjustable dorsal D-ring
  • Impact indicator & inspection log tag
  • Snap-on back pad
  • Stretch ability in the shoulders & back
  • "Quick-Adjust" friction torso buckles
  • Lanyard keepers
  • Web keepers
  • Optional front & side positioning D-rings



CLASS A, E, P, L Available in sizes M - 2XL

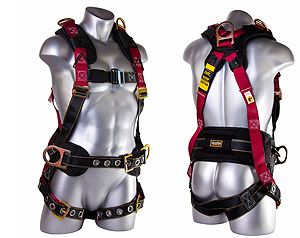

Seraph Construction Harness

  • 6 points of adjustment
  • Adjustable dorsal D-ring
  • Impact indicator & inspection log tag
  • Shoulder pads
  • Stretch ability in the shoulders & back
  • "Quick-Adjust" friction torso buckles
  • Web keepers
  • Padded waist belt
  • Hammer loops
  • Tongue buckle leg straps




PREMIUM EDGE HARNESSES



CLASS A, P Available in sizes S - 2XL

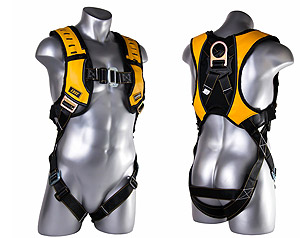

Premium Edge HUV Harness

  • Award winning design
  • 5 points of adjustment
  • Edge Comfort Pocket for Steele Cool Packs or Hydrapak
  • Impact Indicator
  • Adjustable dorsal D-ring
  • Reflective trim
  • Side stretch points
  • Chest equipment slots
  • "Quick-Adjust" friction torso buckles
  • Web keepers
  • Sub-pelvic strap
  • Back pad
  • Yellow vest + Black webbing



CLASS A, P

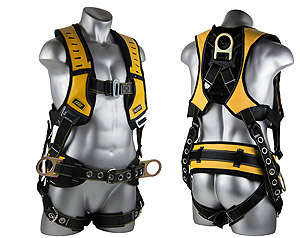

Premium Edge Construction Harness

Contains the same features as Basic HUV, plus:
  • Closed cell foam padded waist belt
  • Side positioning D-rings
  • Optional back brace
