PRODUCTS - Utility / Rigging Lines

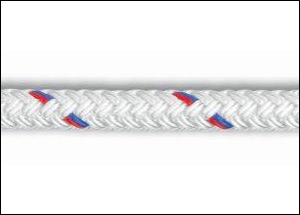

AMSTEEL II PLUS A double braided rope, that derives its high strength from a braided Dyneema®SK75 fiber core. The braided and optional coated Polyester jacket creates a firm rope and serves as abrasion protection to the strength member core. Applications: Utility winch line Features: Low elongation   Pulling/Stringing line   High strength   Wire rope replacement   Lightweight 1/2"  Average tensile (lbs) 19400 Elongation at % of break strength 5/8” Average tensile (lbs) 33800 10%   0.50% 3/4" Average tensile (lbs) 43800 20%   0.67% 7/8”  Average tensile (lbs) 62500 30%   0.96% 1”  Average tensile (lbs) 71300   1 1/8” Average tensile (lbs) 90000   1 1/4" Average tensile (lbs) 101000

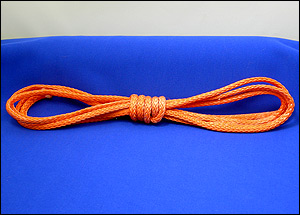

SUPREME X 12 A 12 strand single braided rope made with 100% Dyneema®SK75 fiber. This winch line comes coated with CND’s proprietary Urethane coating for added UV and abrasion protection. Applications: Winch line Features: Low elongation   Wire replacement   High abrasion resistance   Pulling/Stringing line   Excellent flex fatigue   Loading slings   1/7th the weight of wire   Guy wire   Same elongation as wire rope ITEM NO. D(IN.) D(MM) AVG. TENSILE(LBS) AVG. TENSILE(KG) 02032 1/8 3.2 2,900 1,300 02048 3/16 4.8 5,200 2,360 02064 1/4 6.4 8,700 3,950 02079 5/16 7.9 13,300 6,000 02095 3/8 9.5 18,500 8,400 02111 7/16 11.1 23,500 10,600 02127 1/2 12.7 33,800 15,360 02143 9/16 14.3 41,200 18,700 02159 5/8 15.9 52,500 23,800 02191 3/4 19.1 64,600 29,300 02222 7/8 22.2 90,500 41,100 02254 1 25.4 107,700 48,900 02318 1 1/4 31.8 170,000 77,200 02381 1 1/2 38.1 230,000 104,500 *Other diameters available, please contact CND Rope for more information.

DOUBLE BRAID POLYESTER A double braided rope made with 100% high tenacity Polyester offering low stretch and excellent abrasion resistance. Top choice for an economical winch line. Applications: Winch line Features: High resistance to UV   Pulling/Stringing line   High heat resistance       Torque free 1/2"  Average tensile (lbs) 9000 5/8” Average tensile (lbs) 15300 3/4" Average tensile (lbs) 19000 1”  Average tensile (lbs) 34000 1 1/4" Average tensile (lbs) 53000 *Other sizes available, please contact CND rope for more information.

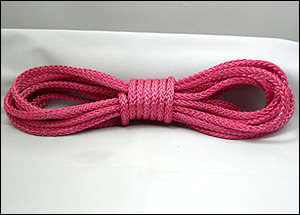

STATIC 12 A high tenacity Polyester 12 strand available in a 1 or 2 ends per carrier, allowing more surface conformance to objects being lifted then a single braid. Static 12 lines are coated to enhance durability. CND Rope’s most popular pulling and stringing line. Applications: Pulling/Stringing line Features: Good grip   Slings   Snag resistant   Handline   Quickly repairable in field   Ski tow rope     1/2"  Average tensile (lbs) 11000 5/8” Average tensile (lbs) 16000 3/4" Average tensile (lbs) 21000 1”  Average tensile (lbs) 36500 *Other sizes available, please contact CND rope for more information.

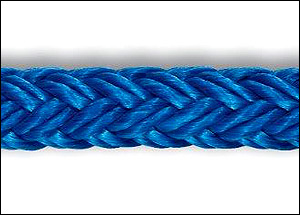

TENEX TEC This rope is a high strength, low stretch specifically designed with 2 ends per carrier, coated for abrasion. Applications: Pulling/Stringing line Features: Good grip   Slings   Easy to splice   Handline   Economical 1/2"  Average tensile (lbs) 13100 5/8” Average tensile (lbs) 18800 3/4" Average tensile (lbs) 24800 1”  Average tensile (lbs) 44500 *Other sizes available, please contact CND rope for more information.

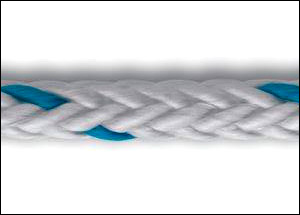

DURAPLEX In Dura-Plex, a 12 strand single braid, the composite strands are braided together using parallay construction to produce a rope with excellent strength to weight ratio. CND Rope’s most popular hand line. Dura-Plex is coated standard Green. Applications: Hand line Features: Flexible   Pilot line   Good Grip   Block line   Abrasion resistant 1/2"  Average tensile (lbs) 6700 5/8” Average tensile (lbs) 11600 3/4" Average tensile (lbs) 14500 1”  Average tensile (lbs) 25000 *Other sizes and colors available. Please contact CND rope for more information.

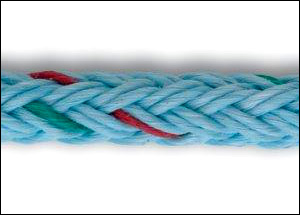

QUICKSPLICE In this fast splicing single braid construction, high strength Ultra Blue firber creates a rope that is 30-30% higher in strength then equivalent polypropylene construction, giving Quick Splice up to 3X more wear life then polypropylene. The surface of this rope develops excellent grip capability while adding to the surface wear life. Additionally, Ultra Blue fiber has excellent di electric properties and is extruded with Samson ropes SL-5 UV inhibitor to provide superior resistance to UV degradation. Applications: Hand line Features: UV stabilized   Light duty pulling line   Good Grip   Block line   Water resistant       Field repairable 1/2"  Average tensile (lbs) 6700 5/8” Average tensile (lbs) 10900 3/4" Average tensile (lbs) 13000 1”  Average tensile (lbs) 23100 *Other sizes available upon request, please contact CND rope for more information.

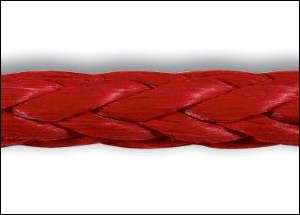

HEAT BOSS™ Made with 100% Technora fiber, Heat Boss offers high strength and a very high melting point in comparison to other fibers. This 12 strand construction is available in many polyurethane colors for added abrasion resistance. Please contact CND Rope for more information. Applications: Winch/Tow line Features: Low stretch   Utility line   Extreme strength   Rigging rope   High heat resistance 1/2"  Average tensile (lbs) 27500 5/8” Average tensile (lbs) 44500 3/4" Average tensile (lbs) 55000 7/8” Average tensile (lbs) 72000 *Smaller diameters available, please contact CND rope for more information.
