PRODUCTS - General Cordage
CND Rope carries a large and varied stock of Synthetic and Natural fiber ropes for all industries.

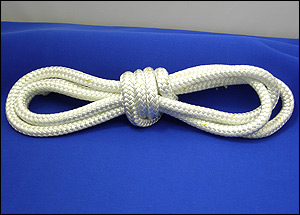

DOUBLE BRAID NYLON
Our DB Nylon is available in diameters from 1/4" up to and including 2 ½”. Larger diameters are available but are not stocked. Please allow 2 weeks delivery for non-stocked items.
| Applications: |
Tow ropes |
Features: |
Flexible |
| |
Anchor/Dock line |
|
Non rotational |
| |
General utility |
|
Splicable |
| |
|
|
Abrasion resistant |
| 1/4” |
Average tensile (lbs) |
2100 |
| 5/16” |
Average tensile (lbs) |
3400 |
| 3/8” |
Average tensile (lbs) |
4800 |
| 7/16" |
Average tensile (lbs) |
6500 |
| 1/2” |
Average tensile (lbs) |
8300 |
| 9/16" |
Average tensile (lbs) |
11700 |
| 5/8” |
Average tensile (lbs) |
15200 |
| 3/4" |
Average tensile (lbs) |
19100 |
| 7/8" |
Average tensile (lbs) |
26000 |
| 1" |
Average tensile (lbs) |
31000 |
| 1 1/8" |
Average tensile (lbs) |
42500 |
| 1 1/4" |
Average tensile (lbs) |
52000 |
| 1 3/8" |
Average tensile (lbs) |
60000 |
| 1 1/2" |
Average tensile (lbs) |
72000 |
| 1 3/4" |
Average tensile (lbs) |
100000 |
| 2" |
Average tensile (lbs) |
118000 |
| 2 1/4" |
Average tensile (lbs) |
146000 |
| 2 1/2" |
Average tensile (lbs) |
175000 |
|
 |

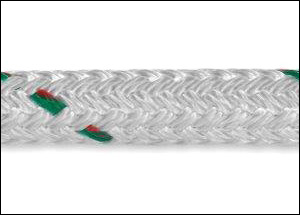

DOUBLE BRAID POLYESTER
Our DB Polyester is available in diameters from 1/4" up to and including 2”. Larger diameters are available but are not stocked. Please allow 2 weeks delivery for non-stocked items.
| Applications: |
Winch line |
Features: |
Firm/Flexible |
| |
Pulling/Stringing |
|
Low stretch |
| |
Lifting slings |
|
Abrasion/Heat and Resistant |
| |
|
|
Torque free |
| 1/4” |
Average tensile (lbs) |
2400 |
| 5/16” |
Average tensile (lbs) |
3400 |
| 3/8” |
Average tensile (lbs) |
4800 |
| 7/16" |
Average tensile (lbs) |
6600 |
| 1/2” |
Average tensile (lbs) |
9000 |
| 9/16" |
Average tensile (lbs) |
12400 |
| 5/8” |
Average tensile (lbs) |
15300 |
| 3/4" |
Average tensile (lbs) |
19000 |
| 7/8" |
Average tensile (lbs) |
27500 |
| 1" |
Average tensile (lbs) |
34000 |
| 1 1/8" |
Average tensile (lbs) |
44700 |
| 1 1/4" |
Average tensile (lbs) |
53000 |
| 1 3/8" |
Average tensile (lbs) |
57000 |
| 1 1/2" |
Average tensile (lbs) |
69200 |
| 1 3/4" |
Average tensile (lbs) |
92000 |
| 2" |
Average tensile (lbs) |
106000 |
| 2 1/4" |
Average tensile (lbs) |
135000 |
| 2 1/2" |
Average tensile (lbs) |
155000 |
|
 |

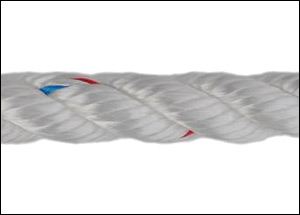

3 STRAND NYLON
Our 3 strand Nylon is available in diameters from 1/4" up to and including 2”.
| Applications: |
General Purpose |
Features: |
Shock load |
| |
Marine ropes |
|
UV inhibited |
| |
|
|
15-28% elongation |
| 1/4” |
Weight Per 100 Feet (lbs) |
1.5 |
Breaking Strength (lbs) |
1500 |
| 5/16” |
Weight Per 100 Feet (lbs) |
2.5 |
Breaking Strength (lbs) |
2700 |
| 3/8” |
Weight Per 100 Feet (lbs) |
3.5 |
Breaking Strength (lbs) |
3400 |
| 1/2” |
Weight Per 100 Feet (lbs) |
6.5 |
Breaking Strength (lbs) |
7000 |
| 5/8” |
Weight Per 100 Feet (lbs) |
10.5 |
Breaking Strength (lbs) |
10600 |
| 3/4" |
Weight Per 100 Feet (lbs) |
14.5 |
Breaking Strength (lbs) |
15000 |
| 7/8" |
Weight Per 100 Feet (lbs) |
20.0 |
Breaking Strength (lbs) |
20000 |
| 1" |
Weight Per 100 Feet (lbs) |
26.0 |
Breaking Strength (lbs) |
25800 |
| 1 1/4" |
Weight Per 100 Feet (lbs) |
40.0 |
Breaking Strength (lbs) |
40000 |
| 1 1/2" |
Weight Per 100 Feet (lbs) |
55.0 |
Breaking Strength (lbs) |
54800 |
| 1 3/4" |
Weight Per 100 Feet (lbs) |
83.0 |
Breaking Strength (lbs) |
74000 |
| 2" |
Weight Per 100 Feet (lbs) |
95.0 |
Breaking Strength (lbs) |
91000 |
|
 |

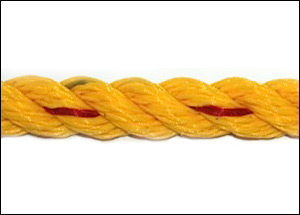

3 STRAND POLYPROPYLENE
Our 3 strand Polypropylene is available in diameters from 3/16” up to and including 2”. This product is only sold in spool lengths. Call CND Rope for more information regarding what lengths are available.
| Applications: |
General Purpose |
Features: |
Floats |
| |
Marine/Fishing apps |
|
Good shock load ability |
| |
|
|
Splicable |
| 1/4” |
Weight Per 100 Feet (lbs) |
1.23 |
Breaking Strength (lbs) |
1250 |
| 5/16” |
Weight Per 100 Feet (lbs) |
2.22 |
Breaking Strength (lbs) |
1900 |
| 3/8” |
Weight Per 100 Feet (lbs) |
2.73 |
Breaking Strength (lbs) |
2700 |
| 1/2” |
Weight Per 100 Feet (lbs) |
4.88 |
Breaking Strength (lbs) |
4100 |
| 5/8” |
Weight Per 100 Feet (lbs) |
8.50 |
Breaking Strength (lbs) |
6200 |
| 3/4" |
Weight Per 100 Feet (lbs) |
10.90 |
Breaking Strength (lbs) |
8500 |
| 7/8" |
Weight Per 100 Feet (lbs) |
15.80 |
Breaking Strength (lbs) |
11500 |
| 1" |
Weight Per 100 Feet (lbs) |
19.20 |
Breaking Strength (lbs) |
14000 |
| 1 1/4" |
Weight Per 100 Feet (lbs) |
29.60 |
Breaking Strength (lbs) |
21000 |
| 1 1/2" |
Weight Per 100 Feet (lbs) |
43.30 |
Breaking Strength (lbs) |
29700 |
| 1 3/4" |
Weight Per 100 Feet (lbs) |
65.10 |
Breaking Strength (lbs) |
43000 |
| 2 |
Weight Per 100 Feet (lbs) |
83.40 |
Breaking Strength (lbs) |
52000 |
| 2 1/4" |
Weight Per 100 Feet (lbs) |
92.00 |
Breaking Strength (lbs) |
69000 |
| 2 1/2" |
Weight Per 100 Feet (lbs) |
107.00 |
Breaking Strength (lbs) |
80000 |
|
 |

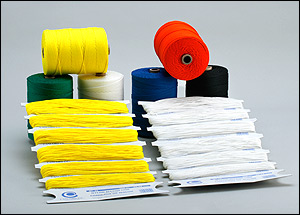

TWINES/MASON LINES/UTILITY CORDS
CND Rope carries a wide variety of small diameter twines for stringing, pulling, masonry, chalk, forestry and tie down applications. Contact CND Rope for more information. |
 |
SOLID BRAID NYLON/SOLID BRAID POLYESTER
Made with 100% filament Nylon or Polyester, these firm round solid braids are durable, strong and are lower stretch then parallel core cords. Our solid braids are available form 3/32" up to and including 1/4". Non splicable, standard color is white.
| Applications: |
Utility cord |
Features: |
Easy knotting |
| |
Tent/Tarp cord |
|
Excellent abrasion |
| |
Tie down |
|
Good Strength |
| 3/32” |
Average tensile (lbs) 380 |
| 1/8” |
Average tensile (lbs) 566 |
| 5/32” |
Average tensile (lbs) 733 |
| 3/16” |
Average tensile (lbs) 1080 |
| 1/4” |
Average tensile (lbs) 1460 |
|
 |

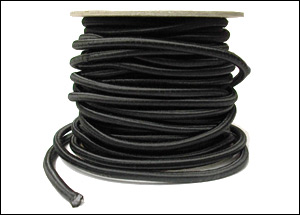

SHOCK CORD
Manufactured with high quality latex rubber as its core, our shock cord is covered with a high tenacity filament Polyester, making it resist abrasion, petroleum products, mildew and marine growth. Ideal for use in the camping, sporting and boating industry. Available in Solid Black or White with Black tracer.
| Applications: |
Tie downs |
Features: |
High elongation |
| |
General Utility |
|
Abrasion resistant |
| |
|
|
Good wear ability |
| 3/16” |
Average tensile (lbs) 150 |
| 1/4" |
Average tensile (lbs) 200 |
| 5/16” |
Average tensile (lbs) 250 |
| 3/8” |
Average tensile (lbs) 300 |
| 1/2" |
Average tensile (lbs) 450 |
|
 |

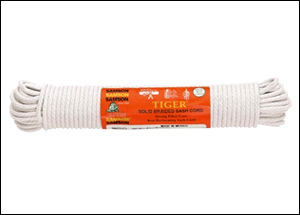

TIGER SASH CORD
Tiger sash cord has a smooth, nonscoring surface for use as gaskets and packing. It has a solid braided cover with a cotton core.
Applications: General cordage. Standard availability in 100ft hanks.
| 3/16” |
Average tensile (lbs) 190 |
| 1/4" |
Average tensile (lbs) 200 |
| 5/16” |
Average tensile (lbs) 450 |
| 3/8” |
Average tensile (lbs) 600 |
|
 |
3 AND 4 STRAND MANILA
Manufactured with Abaca fiber in a 3 or 4 strand twist, this naturel rope is a good general purpose and decorative cordage.
| Applications: |
Oilfield spin line |
Features: |
Good grip capability |
| |
General purpose |
|
Economical |
| |
|
|
5-6% elongation |
| 1/4” |
Weight Per 100 Feet (lbs) |
2.0 |
Breaking Strength (lbs) |
540 |
| 5/16” |
Weight Per 100 Feet (lbs) |
2.9 |
Breaking Strength (lbs) |
900 |
| 3/8” |
Weight Per 100 Feet (lbs) |
4.1 |
Breaking Strength (lbs) |
1215 |
| 1/2” |
Weight Per 100 Feet (lbs) |
7.5 |
Breaking Strength (lbs) |
2385 |
| 5/8” |
Weight Per 100 Feet (lbs) |
13.4 |
Breaking Strength (lbs) |
3960 |
| 3/4" |
Weight Per 100 Feet (lbs) |
16.7 |
Breaking Strength (lbs) |
4860 |
| 7/8" |
Weight Per 100 Feet (lbs) |
22.5 |
Breaking Strength (lbs) |
6930 |
| 1" |
Weight Per 100 Feet (lbs) |
27.0 |
Breaking Strength (lbs) |
8100 |
| 1 1/4" |
Weight Per 100 Feet (lbs) |
41.9 |
Breaking Strength (lbs) |
12150 |
| 1 1/2" |
Weight Per 100 Feet (lbs) |
60.0 |
Breaking Strength (lbs) |
16650 |
| 2" |
Weight Per 100 Feet (lbs) |
107.5 |
Breaking Strength (lbs) |
27900 |
|
 |

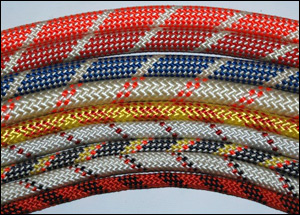

STREAMLINE NYLON KERNMANTLE
Kernmantle ropes consist of many filaments of synthetic fiber bundled in a parallel configuration (Kern), held together, and protected by a tightly braided cover (Mantle). This rope is known as a core load bearing fiber rope. Our STREAMLINE Kernmantle are expected to outlast and outperform conventional ropes by a significant margin.
| Applications: |
Rescue |
Features: |
Low stretch |
| |
Rappelling |
|
Durable |
| |
Caving/Climbing |
|
Non rotational |
| |
Confined space entry |
|
Meets CSA/NFPA |
| 3/8” |
ABS dry(lbs) 6500, ABS wet(lbs) 5800 |
Elongation at 600lbs dry 2% |
| 7/16” |
ABS dry(lbs) 7000, ABS wet(lbs) 6350 |
Elongation at 600lbs dry 1.5% |
| 1/2" |
ABS dry(lbs) 9000, ABS wet(lbs) 8300 |
Elongation at 600lbs dry 1% |
Tensile strengths are average
*Do not use static rope in applications where the rope is intended to absorb energy form arresting a fall, unless a shock absorbing device is used.
|
 |
|
