PRODUCTS - Fall Protection & Safety - SAFETY KITS

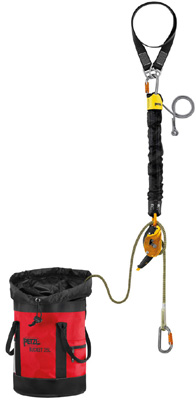

JAG RESCUE KIT Pick-off with the JAG SYSTEM haul kit whose 4:1 mechanical advantage and excellent sheave efficiency allow the user effort to be divided by 4 when raising a victim in order to release him. Evacuation with the I'D S descender, whose ergonomic handle allows the user to easily control the rope's running speed during evacuation. Ready-to-use reversible rescue kit designed to easily pick off and lower a victim. It contains a JAG SYSTEM haul kit, a RING OPEN gated ring, an I’D S descender, a CONNEXION FIXE 150 cm anchor strap, a BUCKET bag and an AXIS 11 mm rope with two sewn terminations. Available in three lengths: 30, 60 and 120 m. Selling points Designed to easily pick off and lower a victim: - pick-off with the JAG SYSTEM haul kit, whose 4:1 mechanical advantage and excellent sheave efficiency allow the user effort to be divided by 4 when raising a victim in order to release him - evacuation with the I'D S descender, whose ergonomic handle allows the user to easily control the rope's running speed during evacuation. Anti-panic function activates if the user pulls too hard on the handle, which brakes and stops the descent automatically. Always ready to use for quick intervention: - JAG SYSTEM equipped with flexible cover that prevents any risk of tangling - rope is pre-installed in the RING OPEN gated ring to allow better control of the descent and provide a system that does not easily come apart - BUCKET bag for transporting the kit - kit comes loaded and ready to use Available in three rope length versions: 30, 60 and 120 meters Rescue kit contents: - a JAG SYSTEM haul kit - a RING OPEN gated ring - an I’D S descender - an AXIS 11 mm rope with two sewn terminations - a CONNEXION FIXE 150 cm anchor strap - a BUCKET 25 liter bag for the 30 and 60 meter versions, and a 35 liter bag for the 120 meter version

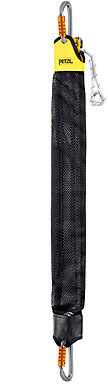

JAG SYSTEM Haul kit for pickoffs, making a releasable anchor, or tensioning a system, thanks to its 4:1 mechanical advantage and excellent efficiency (sheaves with sealed ball bearings). The collapsed kit is very compact, making usage possible even if the distance to the anchor is very short. The JAG SYSTEM haul kit is quick and easy to deploy: it is ready to use thanks to the flexible cover that prevents any risk of tangling. The haul end is color coded for instant identification. It is available in three lengths: 1, 2 and 5 meters. Selling points Versatile: - allows pickoffs, making a releasable anchor, tensioning a system... - can be coupled with an I'D descender to make a reversible rescue kit to pick off and evacuate a victim Hauling effectiveness: - 4:1 mechanical advantage allows user effort to be divided by 4 - excellent efficiency due to sheaves mounted on sealed ball bearings - deployment possible even when the distance to the anchor is very short, thanks to the extreme compactness of the collapsed system - 7.7 mm lightweight rope. The mechanical advantage guarantees a good grip. Quick and easy to deploy: - kit always ready to use thanks to the flexible cover that prevents any risk of tangling - haul end immediately identifiable thanks to the yellow color of the end of the cover - the ends of the cover hold the connectors in position to facilitate clipping Comes with two Am'D TRIACT-LOCK auto-locking carabiners Available in three lengths: 1, 2 and 5 m JAG and JAG TRAXION pulleys also available separately for making long haul systems (e.g. confined space descent/ascent system) View Specifications and Technical Information
