PRODUCTS - Fall Protection & Safety - PULLEYS

JAG TRAXION

Double progress capture pulley designed for use with the JAG double pulley to make a 4:1 haul system. Sheaves mounted on sealed ball bearings for excellent efficiency

Selling points
  • Designed for use with the JAG double pulley to make a 4:1 haul system.
  • Toothed cam with self-cleaning slot optimizes performance under any conditions (frozen or muddy ropes...)
  • Sheave mounted on sealed ball bearings for excellent efficiency
View Specifications and Technical Information



PRO TRAXION

Drop-resistant pulley: rope may be installed when pulley is connected to the anchor.

The PRO TRAXION progress capture pulley was designed to allow rope installation while the pulley is connected to the anchor. With its large diameter sheave and great efficiency, it is particularly appropriate for hauling heavy loads. The side plate locks when loaded to prevent the pulley opening during use. The lower connection point (Becket) can be used to create different types of hauling systems.

Selling points
  • Drop-resistant pulley:
    - allows a rope to be installed when the pulley is connected to the anchor
  • Well suited for hauling heavy loads:
    - large diameter aluminum sheave mounted on sealed ball bearings for excellent efficiency
    - side plate locks when loaded and prevents opening of the pulley during use
  • Versatile:
    - lower connection point for creating different types of hauling systems
    - toothed cam with self-cleaning slot optimizes performance under any conditions: e.g. rope that is icy, muddy, etc.
    - may be used as simple pulley by locking the cam in the raised position
    - cam is equipped with a cord connection point allowing cam disengagement at distance
View Specifications and Technical Information



MICRO TRAXION

The MICRO TRAXION is an ultra-light, ultra-compact progress capture pulley that is exceptionally efficient. The cam can be locked in open position so the device can be used as a simple pulley. Works even on frozen or muddy ropes.

Upper button allows cam to be locked in open position

Selling points
  • Pulley with integrated progress capture device can be used as a self-jamming pulley or simple pulley
  • Upper button allows cam to be locked in open position
  • Aluminum sheave mounted on sealed ball bearings for excellent efficiency
  • Rope clamp works on muddy or frozen ropes
  • Ultra-compact and lightweight



MOBILE Versatile Compact Pulley

Ultra lightweight compact pulley designed for a variety of uses

Selling points
  • Extremely lightweight and compact pulley
  • Designed for hauling systems and deviations
  • Sheave mounted on self-lubricating bushing for efficiency
  • Compatible with all shapes of carabiners



GEMINI Lightweight Double Prusik Pulley

Selling points
  • Special side plates designed for use with a Prusik friction hitch in lightweight progress capture systems
  • Parallel mounted sheaves and auxiliary attachment point for creating different types of hauling systems, including the most complex
  • Sheaves mounted on sealed ball bearings for excellent efficiency
  • Compact and lightweight
View Specifications and Technical Information



TWIN Highly Efficient Double Prusik Pulley

High-strength double pulley designed for rescue professionals to set up progress capture systems of high mechanical advantage.

Selling points
  • Special side plates designed for use with a Prusik friction hitch in lightweight progress capture systems
  • Parallel mounted sheaves and auxiliary attachment point for creating different types of hauling systems, including the most complex
  • Large diameter sheaves mounted on sealed ball bearings for excellent efficiency
  • Accepts up to three¬†carabiners to facilitate rope maneuvers
View Specifications and Technical Information



MINI Lightweight Prusik Pulley

Compact pulley offering a lightweight solution for setting up a progress capture system.

Selling points
  • Special side plates designed for use with a Prusik friction hitch in lightweight progress capture systems
  • Sheave mounted on sealed ball bearings for excellent efficiency
  • Compact and lightweight
View Specifications and Technical Information

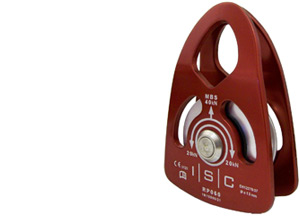

Small Single Prussik Pulley

ISC Prussik Pulleys have tamper-proof Rivets, in compliance with CE EN12278 (2007) & NFPA (1983). These pulleys are available with Bushings, or Roller Bearings.

Available in small, medium and large, max rope diameter 16mm, Max rating 70Kn.

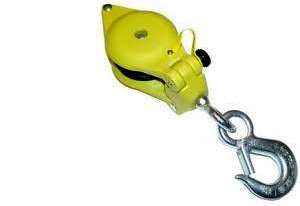

Hard Line Block Pully

This block is constructed of rugged nylon fiberglass reinforced high dielectric material. 3" sheave is side opening for easy loading of rope up to 5/8" diameter. Reinforced 1/2" diameter axle and swivel bearing. Forged hook with safety latch and swivel. Maximum safe working load is 1,000 lbs with rated 3-1 safety factor.
