PRODUCTS - Fall Protection & Safety - ANCHORS

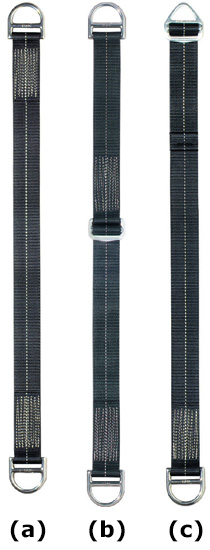

CONNEXION
CONNEXION FIXE Anchor Strap (a)
- Forged steel D-rings on the ends
- Available in three lengths:
- CONNEXION FIXE (C42,100): 100 cm (weight: 335 g)
- CONNEXION FIXE (C42,150): 150 cm (weight: 390 g)
- CONNEXION FIXE (C42 200): 200 cm (weight: 440 g)
- Breaking strength: 35 kN
- Certification: CE EN 795 B, CE EN 354
CONNEXION VARIO Adjustable anchor strap (b)
- Adjustment buckle allows strap to be adjusted between 80 and 130 cm
- Forged steel D-rings on the ends
- Length: 80 to 130 cm
- Weight: 475 g
- Breaking strength: 22 kN
- Certification: CE EN 795 B, CE EN 354
CONNEXION FAST Rapid adjustment anchor strap (c)
- Rapid adjustment buckle on end allows strap to be adjusted between 20 and 150 cm
- Forged steel D-rings on the ends
- Length: 20 to 150 cm
- Weight: 390 g
- Breaking strength: 18 kN
- Certification: CE EN 795 B
View Specifications and Technical Information |
|

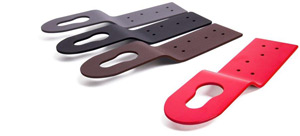

HitchClip™ Roof Anchors
HitchClip™ Roof Anchors are lightweight (4.4 ounces), easy to carry (2” x 11½”), low profile and applied as permanent safety anchors for safe and secure future maintenance and repair. HitchClip™ Roof Anchors are easily installed with six (6) 16d galvanized framing nails or six (6) 2½” exterior screws secured to a sufficient framing member from the ladder at the gutter line, then up to the ridge. Additional HitchClip™ are used for the Roof Jack and Bunk Jack staging accessories. |
|
00101 & 00103

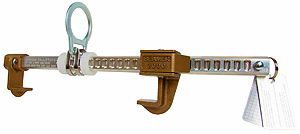

Beamer™ 2000 Anchor Points
- Designed specifically for use at your feet & overhead
- Nylon bushings provide smooth movement along beam & act as an impact indicator in the event of a fall
- Reusable & extremely durable
- Ratcheting end piece
- No tools are needed for fast installation
- Precision machined aluminum bar
- One-handed operation
|
|
00215

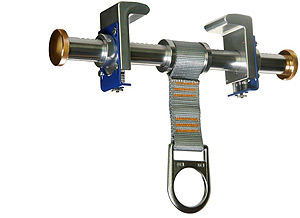

BMR Trolley Anchor
- Free moving rollers
- Web/D-ring connection point
- Easy pin adjustment
- Cannot be used for material handling
- Spring Material: Stainless Steel
- Load Bar & Clamps Material: Aluminum Alloy 7075-T6
- D-ring Material: Steel Alloy SAE4140-Nickel Plating
- Webbing Material: Polyester
- Minimum Breaking Strength: 3,300 lbs. (15 kN)
|
|
00455

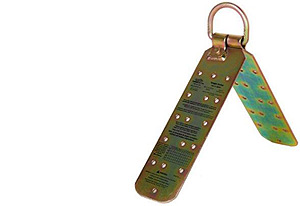

Temper Reusable Anchor
- Fits up to 12/12 roof pitch
- Can be used between 2 trusses when all holes are filled
- Offset holes down the centre to avoid truss splitting
- Can be installed with screws or duplex nails
- Silk screen labels
|
|
00691

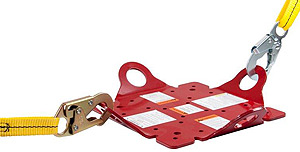

4-Way Plate Anchor
- Supports 1 worker in fall arrest or 2 workers in fall restraint
- Constructed of 100% 1/4" hot rolled steel
- Applicable for wood, metal & concrete applications
- 4 connection points greatly increase the potential working range
- 90 degree angles between its connection points make the 4-way Plate Anchor a perfect rooftop corner joint for horizontal lifeline (HLL) systems
- When used in combination with a horizontal lifeline system, the horizontal lifeline can support 2 workers in fall arrest or 4 workers in a fall restraint
|
|
00600

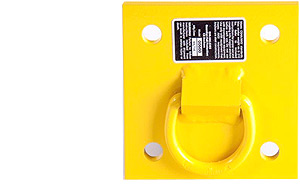

CB-1-B
- Permanent or temporary anchor point
- Can facilitate a horizontal lifeline system
- Powder coated for corrosion protection
- Available in stainless steel
- Available with a backer plate for use on a beam or structure capable of withstanding 5,000 lbs.
- Fasteners not included
|
|
NTRA-011

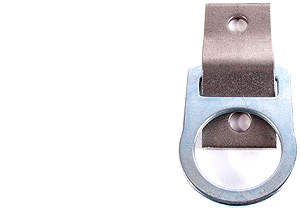

D-ring Anchor
- Bolt to structure using two 1/2" grade 5 bolts
- 304 stainless steel plate, drop forged, alloy D-ring
- Plate size 1/4" x 2" x 4 1/4"
|
|
01640, 01630 & 01620
3', 4' & 6' Cross Arm Straps
- High strength 12,000 lbs. minimum breaking strength
- 2" wide polyester webbing
- 2-ply construction for abrasion resistance and long life
- Choker stye with web loop and D-ring ends
|
|
|
